MODEL

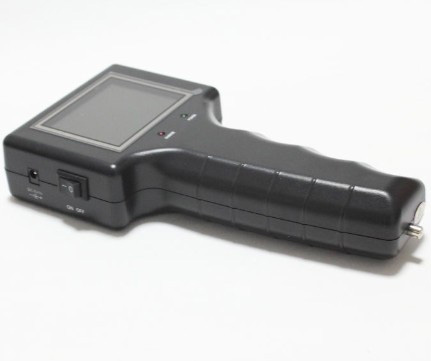

CCTV Tester 2

 Video Test

 Signal mode

NTSC/PAL (Auto adapt)

 Display

3.5 inch digital TFT-LCD ,960 x 240 resolution

 LCD adjustment

Brightness, Contrast, Saturation adjustable

 Video IN/OUT

1 channel RCA/BNC Input

 Video Output Mode

1.0 Vp-p

 Video Level test

 Level test

Video signals measured in IRE or mV

 PTZ controller

 Communication

 PTZ Protocol

 Baud Rate

 Video Signal Generation

 Color bar generation

 UTP CABLE TEST

 UTP cable test

Test UTP cable connection status and display in the screen. Read the number of the test box.

 DC12V 1A power output

 DC12V power output

Output DC12V1A power for camera

 Audio input test

 Audio input test

test the pickup and other audio equipments on the front-end

 RS485 data analyst

 Data Monitor

 POWER

 Power Adapter

DC5V, 2A

 Battery

Built-in 3.7V Lithium polymer battery ,3000mAh

 Rechargeable

After charging 3-4 hour, working time lasts 12 hours

 Low Consumption

Energy saving technology

 General

 Working Temperature

-10℃---+50℃

 Working Humidity

30%-90%

 Dimension/Weight

176mmx94mmx36mm/340g
