Especificaciones:

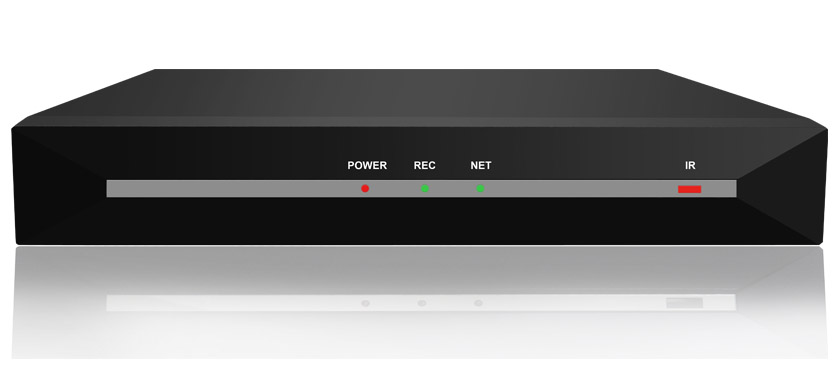

• Model NO			3704GL
  	Operation System		Linux
  Video	Video System		NTSC/PAL Switch Selectable
  	Video Input		BNC*4 (1.0Vp-p 75Ω)
  	Video Output		1 CH BNC(1.0Vp-p 75Ω); 1 CH HD VGA Output
  	Spot		N/A
  	Loop Out		N/A
  Audio	VGA Output		1920×1080,1280×1024,1440X900,1024×768,800×600
  	Input		4CH RCA
  	Output		1 CH RCA
  Control	Talk Back		YES
  	Mouse		USB2.0
  Storage	IR Controller		YES
  Display	Build In Interface		SATA HDD 1ea (Up to 2TB)
  	Division		1,4
  Recording	Zoom		Preview and Playback Zoom Support
  	Compression		H.264 Main Profile
  	Recording Mode		Manual/Schedule/Motion Detection/Sensor
  	Record resolution		4CH D1@15fps/ch
  	Quality		Best,Fine,Norm,Bit-rate settings(16kbps-2Mbps)
  	Motion Detection		High, Higher, Middle, Low
  	Water Mark		YES
  	Concurrent Playback		4CH sync playback
  	Speed		Normal, Slow & Fast(1/5,1/4,1/3,1/2,1,2﹡,3﹡,4﹡,5﹡)
  Communication	Search Method		Time, Event, Channels and Calendar
  	Remote Software		Remote Client, IE Brower, Mobile, CMS, Firefox, Google Ghrome
  	Remote Operation		Remote view, Remote playback, Remote setup
  	Network Service		TCP/IP, UDP, HTTP,DDNS, SMTP(SSL), LAN, DHCP, PPPOE
  	WAN RJ45		10/100 Mbit/s
  	Mobile		Android, iPhone, iPad
  	3G External		optional
  	Wifi External		Optional
  	GUI Interface		Supported GUI 16 Bit True Color
  Backup	PTZ Protocol		1*RS485, Support 18 Kinds of Protocol
  	Internal		Built-in DVR-RW(optional)
  	External		USB2.0, Removable DVR-RW
  	Network		YES
  General	File		H.264 Compression/AVI
  	Alarm In/Out		optional
  	RS-485		1
  	RS-232		N/A
  	Operation Temperature		0°～60°
  	Working Humidity		RH 90%(MAX)
  	Power Consumption		DC12V, 2A, 12-15W(Exclude HDD)



Sistema:

•   Sistema Operativo Linux RTOS, Buena transmicion de datos en la red, alta estabilidad

•   Interfaz GUI, seleccion multiligue

•   Con Deteccion de movimientos

•   Grabacion Manual, Grabacion programada

• Multi-Plex: Preview, Playback, backup, transmicion de red simultanea.

• Nota:
  • Facil de Instalar
  • Incluye Mouse
  • Incluye fuente de Poder
  • Incluye control Remoto
  • Incluye Manual de Uso en Ingles.

• Si desea Factura Agregar el 16% de IVA.
• No Incluye Envio
• Aceptamos Depositos a Cuenta de Banco, Tarjetas de Credito y Debito.
