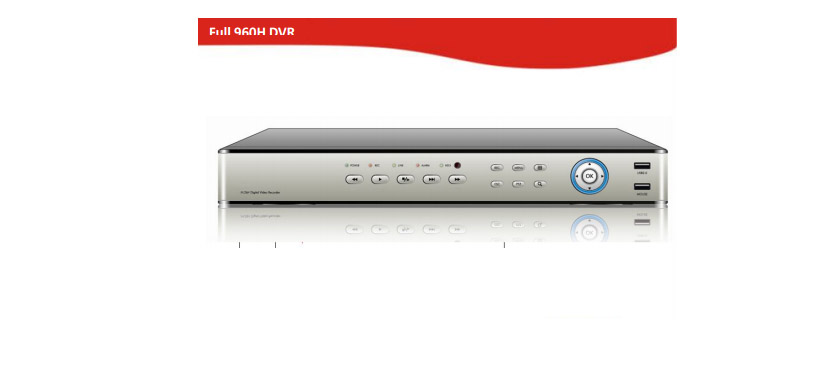

DVR 0490H |
 |
|
|
|
Especificaciones:
| Model NO. |
AS-0490H |
| Camera |
|
| Main Processor |
Embedded Processor(HI3515A) |
| Operating System |
Embedded LINUX |
| Video |
|
| Input |
8 Channel, BNC (1.0 Vp-p,75Ω) |
| Output |
1 TV, 1 VGA, 1 HDMI |
| Audio |
|
| Input |
4 Channel, RCA |
| Output |
1 Channel, RCA |
| PTZ |
|
| Interface |
RS485 |
| Protocol |
Pelco-D, Pelco-P, Sony, Sharp, Panasonic, Samsung and Other Protocols |
| Baud Rate |
110~921600 |
| Address |
0~255 |
| Display |
|
| TV |
BNC (1.0 Vp-p,75Ω) Resolution: PAL: 704×576, NTSC: 704×480 |
| VGA |
Resolution: 800×600, 1024×768, 1280×1024 |
| HDMI |
Resolution: 1080P(1920×1080) |
| Display Split |
1/4 |
| Privacy Masking |
4 Rectangular Zones (Each camera) |
| OSD |
Camera title, Time, Video loss, Alarm, Motion detection, Recording |
| Recording |
|
| Video Compression |
H.264 |
| Audio Compression |
ADPCM |
| Resolution |
PAL: D1(704×576), CIF(352×288) NTSC: D1(720×480), CIF(352×240) |
| Video Quality |
Best/Fine/NOrmal |
| Record Rate |
PAL: D1@100fps, CIF@100fps NTSC: D1@120fps/CIF@120fps |
| Record Mode |
Manual\Timer\Motion Detection\Sensor |
| Playback & Backup |
|
| Sync Playback |
1/4 |
| Remote Playback |
4 Channel |
| Search Mode |
ALL, Channel, Manual, Time, Date, Motion Detection, Sensor |
| Backup Mode |
USB Device/Network(Support back up to AVI directly) |
| Network |
|
| Interface |
1 RJ45 10M/100M Adaptive Ethernet Interface |
| Network Functions |
HTTP, IPv4, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS |
| Web Browser |
IE6-10, Firefox, Chrom |
| CMS Software |
Support Windows XP /Windows Vista/Windows 7/Windows 8 |
| Extra Stream |
CIF/QCIF(1~25fps) |
| Smart Phone |
iPhone, ipad, Windows Phone, Android, Blackberry, Symbian |
| Hard Disk Driver |
|
| Interface Type |
1 SATA Interface |
| Capacity |
Up to 2TB Capacity |
| General |
|
| Language |
English, Italian,Greek, Russian, Polish, Portuguese, Turkish, Hungrain,Spanish, French, German Japanese,Slonakia,Vietnam, Simple Chinese, Traditional Chinese |
| USB Interface |
2 USB 2.0 Interfaces |
| Power Supply |
DC12V/3A |
| Working Environment |
-10~55℃/10~90% |
| Dimension (W×D×H) |
354mm×245mm×45mm |
| Weight |
4KG (Without HDD) |
|
|
Sistema:
-
Sistema Operativo Linux RTOS,
Buena transmicion de datos en
la red, alta estabilidad
-
Interfaz GUI, seleccion multiligue
-
Con Deteccion de movimientos
-
Grabacion Manual, Grabacion programada
- Multi-Plex: Preview, Playback,
backup, transmicion de red simultanea.
- Nota:
- Facil de Instalar
- Incluye Mouse
- Incluye fuente de Poder
- Incluye control Remoto
- Incluye Manual de Uso en Ingles.
- Si desea
Factura Agregar el 16% de IVA.
- No Incluye Envio
- Aceptamos Depositos
a Cuenta de Banco, Tarjetas de Credito y
Debito.
|
|
